Profi Bundle

SALE

From: 1.999,41

If you want to start right from the beginning with three axes, you can do this with our Pro bundle. Besides the slider, a pan and tilt axis is also included.

PINE Controller

Choose between PINE R and PINE II Controller.

Carbon Fiber Slider

Our compact and very lightweight carbon fiber slider is available in 60 cm and 100 cm and is ideal for professional time-lapse and video shooting. The innovative motor quick release allows changing of motors in seconds and is also very helpful to operate the slider without the motor. The slider offers all around flexible mounting options via various 1/4″ and 3/8″ threads as well as milled-in Arca-Swiss profiles on all sides.

Stepper Motor

Our NEMA17 Stepper Motors attach to our carbon-fiber slider and come in 3 different gear-ratios which gives you the best flexibility to choose between fast speeds and high payload.

  • 5:1
    Good for fast slider speeds needed for real-time video movements. Vertical slider movements are only possible with low payloads up to 3 kg. Max. Speed: 5.5 cm/s.
  • 14:1
    Our RECOMMENDATION. Best compromise between speed and payload. Well suited for time-lapse setups and vertical slider movements with medium to heavy payload up to 6 kg. Max. Speed: 4.0 cm/s.
  • 19:1
    Good for vertical movements with heavy loads up to 10 kg. This motor has a slow maximum speed of 2.5 cm/s.

NT Head (Pan & Tilt)

Our NT head consists of two single NT axes, which can be combined with a connection set for full pan/tilt configuration. Ideal for giga-pixel and 360-degree shots, but also a super choice mounted on our slider.

1.039,99

PINE Mounting Plate

This Mounting Plate can be mounted to the back of the PINE Controller. This allows you to attach the PINE Controller to the side of the NT Head, to the optional “Slider Controller Mount” bracket, or to the side of the slider.

33,99

In stock

Motor Cable

Our professionally manufactured motor cables are used to connect our various motor units to the PINE controller.

Hirose BFM

Motor Cable

Our professionally manufactured motor cables are used to connect our various motor units to the PINE controller.

Hirose BFM
100cm

Motor Cable

Our professionally manufactured motor cables are used to connect our various motor units to the PINE controller.

Hirose BFM
50cm

Ball Head

This leveling Ball Head tilts up to 15 degrees on all sides and can be mounted onto the base of the carbon fiber slider. It includes an Arca-Swiss clamp on the top which allows to easily mount and align a camera or our NT Head.

Only 2 left in stock

Slider Controller Mount

Bracket to mount the PINE controller on the carriage of our slider.

Power Supply

Various options to power your Black Forest Motion Kit.

Shutter Release Cable

Release cable for connecting a camera to the PINE controller.

Case Set

Perfect to transport and protect Black Forest Motion products.

Category: ,

Description

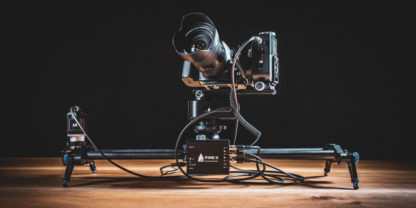

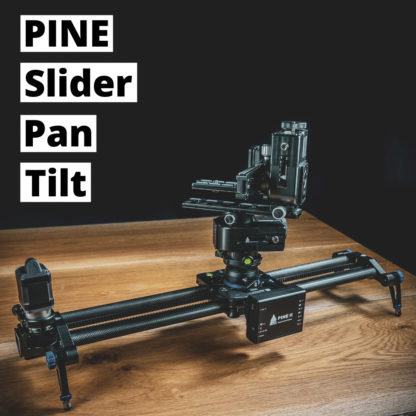

This bundle includes our new optimized PINE II controller or our established PINE R controller, lightweight carbon slider and NT head.

Our brand new compact 60cm and 100cm carbon slider and NT head were designed by Nico Engel and manufactured by Black Forest Motion.

Perfect for professional time-lapse and video shooting together with our PINE motion controllers. The NT head can be used together with the slider or separately for time-lapse, giga-pixel and 360-degree photography.

Vimeo

By loading the video, you accept Vimeo's privacy policy.
Learn more

Load video

This bundle includes:

  • BFM carbon fiber slider (60cm or 100cm)
  • Stepper motor (different gear ratios available)
  • PINE II motion controller or PINE R motion controller
  • 3x motor cable
  • Includes travel bag for the slider
  • NT Head (Pan & Tilt)
  • Mounting plate
  • Optional controller mounting bracket to attach the PINE controller to the slider
  • Optional ball head for alignment
  • Optional power supply
  • Optional release cable
  • Optional carrying case set

Slider features:

  • Super lightweight carbon fiber design
  • 60cm/100cm slider length
  • Weight with motor: approx. 3.0kg
  • Overall dimensions (with legs folded): length – 71cm (60cm version) / 111cm (100cm version), width – 17cm, height (without motor) – 8cm
  • Compatible with our NEMA17 stepper motors – Choose from a variety of ratios.
  • Innovative motor quick release clamps allow manual operation of the slider without a motor and provide
  • Easy and quick change of motors.
  • Flexible legs to adapt the slider to any surface
  • Integrated Arca-Swiss compatible rail profile on both sides for easy tripod mounting
  • 1/4″ screw-on base plate
  • Includes travel bag

NT head features:

  • High precision worm gear (gear ratio 1:32)
  • Arca-Swiss compatible rail profile integrated into the housing for perfect mounting flexibility
  • Multiple 1/4″-20 and 3/8″-16 threads
  • Integrated spirit levels
  • Arca-Swiss Rails included for combining pan and tilt axes
  • Thumb screw for manual motor turns without controller (for adjustment or calibration)
  • High quality motor connectors (directly compatible with our motor cables for connection to PINE controllers)
  • Weight: approx. 2.5kg
  • Precision when used with PINE: 0.001758 degrees per step

Selecting a suitable gear ratio of the slider motor:

  • 5:1 – Good for fast slider speeds needed for real-time video movements. Vertical slider movements are only possible with low payloads up to 3kg. Max. Speed: 5.5cm/s
  • 14:1 – Best compromise between speed and payload. Well suited for time-lapse setups and vertical slider movements with medium to heavy payloads up to 6kg. Max. Speed: 4.0cm/s
  • 19:1 – Good for vertical movements with heavy loads up to 10kg. This motor has a slow maximum speed of: 1.5cm/s

Additional information

Weight 8 kg

PINE Controller

Weight 0.266 kg
Dimensions 13 × 10.5 × 7.5 cm
Brand

Black Forest Motion, Black Forest Motion

Controller

PINE II, PINE II, PINE R, PINE R

Carbon Fiber Slider

Weight 2.77 kg
Dimensions 20 × 8.5 × 115 cm
Brand

Black Forest Motion, Black Forest Motion

Slider Length

100cm, 100cm, 60cm, 60cm

Stepper Motor

Weight N/A
Dimensions N/A
Gear-Ratio

1:14, 1:14, 1:19, 1:19, 1:5, 1:5

NT Head (Pan & Tilt)

Weight 2.7 kg
Dimensions 25.5 × 26.5 × 12.5 cm

PINE Mounting Plate

Weight 0.08 kg
Dimensions 3.5 × 4 × 7.5 cm

Motor Cable

Weight 0.04 kg
Dimensions 10 × 10 × 2 cm
Plug

Hirose BFM, Hirose BFM

Length

100cm, 150cm, 100cm, 150cm

Motor Cable

Weight 0.04 kg
Dimensions 10 × 10 × 2 cm
Plug

Hirose BFM, Hirose BFM

Length

100cm, 100cm

Motor Cable

Weight 0.04 kg
Dimensions 10 × 10 × 2 cm
Plug

Hirose BFM, Hirose BFM

Length

50cm, 50cm

Ball Head

Weight 0.495 kg
Dimensions 12.5 × 10 × 9.3 cm
Brand

Black Forest Motion, Black Forest Motion

Slider Controller Mount

Weight 0.05 kg
Dimensions 6.5 × 6.5 × 5.5 cm
Brand

Black Forest Motion

Power Supply

Weight N/A
Dimensions N/A
Power Supply

D-Tap Cable, D-Tap Cable, Power Supply, Power Bank, Power Supply, Power Bank, QCP Stick, QCP Stick, USB-C PD Powerbank for PINE II, USB-C PD Powerbank for PINE II

Shutter Release Cable

Weight 0.02 kg
Dimensions 8.5 × 10.5 × 1.5 cm
Kamera

Canon – EOS 1000D, Canon – EOS 100D, Canon – EOS 10D, Canon – EOS 110D, Canon – EOS 1200D, Canon – EOS 1300D, Canon – EOS 1D, Canon – EOS 1D C, Canon – EOS 1D Mark II, Canon – EOS 1D Mark III, Canon – EOS 1D Mark II N, Canon – EOS 1D Mark IV, Canon – EOS 1Ds, Canon – EOS 1Ds Mark II, Canon – EOS 1D X, Canon – EOS 1DX Mark III, Canon – EOS 20D, Canon – EOS 20Da, Canon – EOS 250D, Canon – EOS 300D, Canon – EOS 30D, Canon – EOS 350D, Canon – EOS 400D, Canon – EOS 40D, Canon – EOS 450D, Canon – EOS 500D, Canon – EOS 50D, Canon – EOS 550D, Canon – EOS 5D, Canon – EOS 5D Mark II, Canon – EOS 5D Mark III, Canon – EOS 5D Mark IV, Canon – EOS 5DS R, Canon – EOS 600D, Canon – EOS 60D, Canon – EOS 60Da, Canon – EOS 650D, Canon – EOS 6D, Canon – EOS 6D Mark II, Canon – EOS 700D, Canon – EOS 70 D, Canon – EOS 750D, Canon – EOS 760D, Canon – EOS 77D, Canon – EOS 7D, Canon – EOS 7D MarkII, Canon – EOS 800D, Canon – EOS 80D, Canon – EOS 90D, Canon – EOS D30, Canon – EOS D60, Canon – EOS M5, Canon – EOS M6, Canon – EOS M6 Mark II, Canon – EOS R, Canon – EOS R5, Canon – EOS R6, Canon – G5X, Canon – Kiss Digital, Canon – Kiss F Digital, Canon – Kiss N, Canon – Kiss X2, Canon – Kiss X3, Canon – Kiss X4, Canon – Kiss X5, Canon – Kiss X50, Canon – Kiss X6, Canon – Kiss X9, Canon – PowerShot G10, Canon – PowerShot G11, Canon – PowerShot G12, Canon – PowerShot G15, Canon – PowerShot G1 X, Canon – PowerShot G1 X Mark II, Canon – PowerShot Sx50 HS, Canon – Rebel SL1, Canon – Rebel SL2, Canon – Rebel T1i, Canon – Rebel T2i, Canon – Rebel T3, Canon – Rebel T3i, Canon – Rebel T4i, Canon – Rebel T5i, Canon – Rebel T6i, Canon – Rebel T7i, Canon – Rebel Xsi, Canon – Rebel XT, Canon – Rebel Xti, Canon – T6s, Canon – XS, Contax – 645, Contax – N, Contax – N1, Contax – N Digital, Contax – NX, FujiFilm – GFX 100, FujiFilm – GFX 50S, FujiFilm – S1, FujiFilm – X100F, FujiFilm – X100T, FujiFilm – X-30, FujiFilm – X70, FujiFilm – X-E1, FujiFilm – X-E2, FujiFilm – X-H1, FujiFilm – X-M1, FujiFilm – X-T1, FujiFilm – X-T10, FujiFilm – X-T2, FujiFilm – X-T20, FujiFilm – X-T3, FujiFilm – X-T4, Hasselblad – H, Hasselblad – H3D, Hasselblad – H3DII, Hasselblad – H4D, Hasselblad – H4D-200MS, Hasselblad – H4D-31, Hasselblad – H4D-40, Hasselblad – H4D-50, Hasselblad – H4D-50MS, Hasselblad – H4D-60, Hasselblad – H4X, Hasselblad – H5D, Hasselblad – H5D-200, Hasselblad – H5D-200C, Hasselblad – H5D-200MS, Hasselblad – H5D-40, Hasselblad – H5D-50, Hasselblad – H5D-50C, Hasselblad – H5D-50C WiFi, Hasselblad – H5D-60, Hasselblad – H5X, Hasselblad – H6D-100C, Hasselblad – H6D-50C, Kodak – DSC-530, Leica – DigiLux 2, Leica – DigiLux 3, Leica – V-Lux 1, Leica – V-Lux 2, Leica – V-Lux 3, Leica – V-Lux 4, Leica – V-Lux (Typ 114), Leica – SL2, Minolta – DiMAGE 5, Minolta – DiMAGE 7, Minolta – DiMAGE 7Hi, Minolta – DiMAGE 7i, Minolta – DiMAGE A1, Minolta – DiMAGE A2, Minolta – DiMAGE A2000, Minolta – Dynax 3, Minolta – Dynax 4, Minolta – Dynax 5000, Minolta – Dynax 500si, Minolta – Dynax 505si, Minolta – Dynax 5d, Minolta – Dynax 7, Minolta – Dynax 7000, Minolta – Dynax 7D, Minolta – Dynax 9, Minolta – Dynax 9000, Minolta – Dynax Sweets, Minolta – Maxxum3, Minolta – Maxxum 4, Minolta – Maxxum 5000, Minolta – Maxxum 500si, Minolta – Maxxum 505si, Minolta – Maxxum 5D, Minolta – Maxxum 600si, Minolta – Maxxum 7, Minolta – Maxxum 7000, Minolta – Maxxum 700si, Minolta – Maxxum 7D, Minolta – Maxxum807si, Minolta – Maxxum 9, Minolta – Maxxum 9000, Nikon – D1, Nikon – D1H, Nikon – D1X, Nikon – D2, Nikon – D200, Nikon – D2H, Nikon – D2HS, Nikon – D2X, Nikon – D2XS, Nikon – D3, Nikon – D300, Nikon – D300S, Nikon – D3100, Nikon – D3200, Nikon – D3300, Nikon – D3s, Nikon – D3X, Nikon – D4, Nikon – D4S, Nikon – D5, Nikon – D500, Nikon – D5000, Nikon – D5100, Nikon – D5200, Nikon – D5300, Nikon – D5500, Nikon – D5600, Nikon – D600, Nikon – D610, Nikon – D700, Nikon – D7000, Nikon – D70S, Nikon – D7100, Nikon – D7200, Nikon – D750, Nikon – D7500, Nikon – D780, Nikon – D80, Nikon – D800, Nikon – D800 E, Nikon – D810, Nikon – D810 A, Nikon – D850, Nikon – D90, Nikon – DF, Nikon – Z6, Nikon – Z7, Nikon – Z9, Olympus – E-100, Olympus – E-30, Olympus – E-410, Olympus – E-420, Olympus – E-450, Olympus – E-510, Olympus – E-520, Olympus – E-600, Olympus – E-620, Olympus – OM-D E-M1, Olympus – OM-D E-M10, Olympus – OM-D E-M10 II, Olympus – OM-D EM-1 II, Olympus – OM-D EM-1 III, Olympus – OM-D E-M5, Olympus – OM-D E-M5 II, Olympus – OM-D E-M5 III, Olympus – PEN E-P1, Olympus – PEN E-P2, Olympus – PEN E-P3, Olympus – PEN E-P5, Olympus – PEN E-PL2, Olympus – PEN E-PL3, Olympus – PEN E-PL5, Olympus – PEN E-PL7, Olympus – PEN E-PL8, Olympus – XZ-1, Panasonic – DMC-3500, Panasonic – DMC-FZ2000, Panasonic – DMC-G80, Panasonic – DMC-G85, Panasonic – FT 2, Panasonic – FZ100, Panasonic – FZ-1000, Panasonic – FZ15, Panasonic – FZ150, Panasonic – FZ20, Panasonic – FZ200, Panasonic – FZ20S, Panasonic – FZ30, Panasonic – FZ300, Panasonic – FZ30K, Panasonic – FZ30S, Panasonic – FZ-35, Panasonic – FZ-45, Panasonic – FZ50, Panasonic – FZ50S, Panasonic – G1, Panasonic – G10, Panasonic – G2, Panasonic – G3, Panasonic – G5, Panasonic – G6, Panasonic – G7, Panasonic – G9, Panasonic – GF1, Panasonic – GH1, Panasonic – GH2, Panasonic – GH3, Panasonic – GH4, Panasonic – GH5, Panasonic – GH5s, Panasonic – GX1, Panasonic – GX7, Panasonic – GX7 L1, Panasonic – GX8, Panasonic – L10, Panasonic – LC1, Panasonic – S1, Panasonic – S1H, Panasonic – S1R, Panasonic – TS2, Pentax – 645D, Pentax – ist D, Pentax – Iist DL, Pentax – ist DL2, Pentax – ist DS, Pentax – ist DS2, Pentax – K1, Pentax – K100D, Pentax – K100D Super, Pentax – K10D, Pentax – K10 Grand Prix, Pentax – K110D, Pentax – K200D, Pentax – K20D, Pentax – K-30, Pentax – K-3 II, Pentax – K-5, Pentax – K-50, Pentax – K-500, Pentax – K-5 II, Pentax – K-5 Iis, Pentax – K-7, Pentax – K-M, Pentax – MZ-6, Pentax – MZ-L, Pentax – ZX-L, Samsung – GX-10, Samsung – GX-1L, Samsung – GX-1S, Samsung – GX-20, Samsung – NX-10, Samsung – NX-100, Samsung – NX-11, Samsung – NX-5, Sigma – SD1, Sigma – SD14, Sigma – SD15, Sigma – SD1 Merrill, Sony – A100, Sony – A200, Sony – A300, Sony – A3000, Sony – A33, Sony – A35, Sony – A350, Sony – A3500, Sony – A37, Sony – A400, Sony – A450, Sony – A500, Sony – A5000, Sony – A5100, Sony – A55, Sony – A550, Sony – A550V, Sony – A560, Sony – A57, Sony – A580, Sony – A6000, Sony – A6300, Sony – A6400, Sony – A65, Sony – A6500, Sony – A65V, Sony – A6600, Sony – A68, Sony – A7, Sony – A700, Sony – A77, Sony – A77V, Sony – A7 II, Sony – A7 III, Sony – A7R, Sony – A7R II, Sony – A7R III, Sony – A7R IV, Sony – A7S, Sony – A7S II, Sony – A7S III, Sony – A850, Sony – A9, Sony – A900, Sony – A99, Sony – A99 II, Sony – NEX 3N, Sony – NEX 5N, Sony – RX10, Sony – RX10 II, Sony – RX10 III, Sony – RX10 IV, Sony – RX 100, Sony – RX 100 II, Sony – RX 100 IV, Sony – RX 100 V, Sony – RX1R II, Sony – ZV-1

Case Set

Weight 3.6 kg
Dimensions N/A
Variante

Suitcase only, Suitcase & mesh bag, Suitcase & backpack system, Suitcase, mesh bag & backpack system, Suitcase, mesh bag & shoulder strap
